Base Specifications
Frame
- 4″ x 8″ x 3/8″ (102 x 203 x 10 mm) Tubular frame
- Hitch jack
- Leveling crank
Safety Equipment
- Safety chain
- Transport warning light package
Tires
- 8-Bolt hubs (14’–30′) (4.3–9.1 m)
- 10-Bolt hubs (34’–38′) (10.4–11.6 m) main frames only
- 12.5L x 15 tires on non-winged units
- (used) 385/65R 22.50 tires on winged units
Gangs

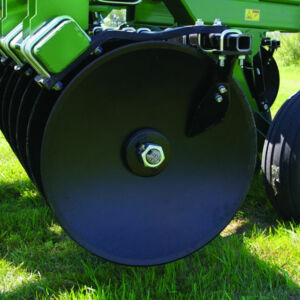

- 30″ x 5/16″ (762 x 8 mm) plain blades
- 13″ (330 mm) blade spacing
- 1-15/16″ (49 mm) gang shafts
- 214 series re-lube gang bearings
- Gang angle adjustment
- Spring cushion gangs
- Gang bolt wrench
- Solid mount single scrapers
- 3 step down blades on outside end of each rear gang
Hydraulics
- Hydraulic cylinders with hoses to tractor
General Information, Weights and Dimensions
Model 862NT 30″ x 5/16″ (762 x 8 mm) spring cushion gang blades with 13″ (330 mm) blade spacing
Model Number |
Cutting Width |
No. of Bearings |
No. of Blades |
Transport |
Weight |
Approx Wt. |
Approx. Power req’d |
||
|---|---|---|---|---|---|---|---|---|---|
Width |
Height |
Per Blade |
Per Foot |
||||||
| 862NT-14 Non-Wing | 14′ 4″ (4.4 m) |
6F, 6R | 12F, 14R | 15′ 11″ (4.6 m) |
7′ 0″ (2.1 m) |
507 lbs (230 kg) |
920 lbs (417 kg) |
13,183 lbs (5,980 kg) |
170–225 hp (127–168 kW) |
| 862NT-16 Non-Wing | 16′ 4″ (5.0 m) |
6F, 6R | 14F, 16R | 18′ 5″ (5.6 m) |
7′ 0″ (2.1 m) |
457 lbs (207 kg) |
840 lbs (381 kg) |
13,716 lbs (6,222 kg) |
195–260 hp (145–194 kW) |
| 862NT-22 Wing | 22′ 6″ (6.6 m) |
10F, 10R | 20F, 22R | 13′ 11″ (4.2 m) |
12′ 10″ (3.9 m) |
643 lbs (292 kg) |
1,200 lbs (544 kg) |
27,011 lbs (12,252 kg) |
260–350 hp (194–261 kW) |
| 862NT-26 Wing | 26′ 8″ (8.1 m) |
12F, 10R | 24F, 26R | 14′ 10″ (4.5 m) |
14′ 2″ (4.3 m) |
579 lbs (263 kg) |
1,085 lbs (492 kg) |
28,939 lbs (13,127 kg) |
320–430 hp (239–321 kW) |
| 862NT-30 Wing | 30′ 9″ (9.4 m) |
14F, 12R | 28F, 30R | 17′ 2″ (5.2 m) |
15′ 10″ (4.8 m) |
554 lbs (251 kg) |
1,045 lbs (474 kg) |
32,133 lbs (14,575 kg) |
360–480 hp (269–358 kW) |
| 862NT-34 Wing | 34′ 11″ (10.6 m) |
16F, 14R | 32F, 34R | 16′ 0″ (4.9 m) |
14′ 2″ (4.3 m) |
571 lbs (259 kg) |
1,080 lbs (490 kg) |
37,711 lbs (17,105 kg) |
420–560 hp (313–418 kW) |
| 862NT-38 Wing | 39′ 0″ (11.9 m) |
18F, 16R | 36F, 38R | 16′ 0″ (4.9 m) |
17′ 9″ (5.4 m) |
587 lbs (266 kg) |
1,113 lbs (505 kg) |
43,424 lbs (19,697 kg) |
460–620 hp (343–462 kW) |
Due to working depth and ground conditions. HP requirements will vary.
