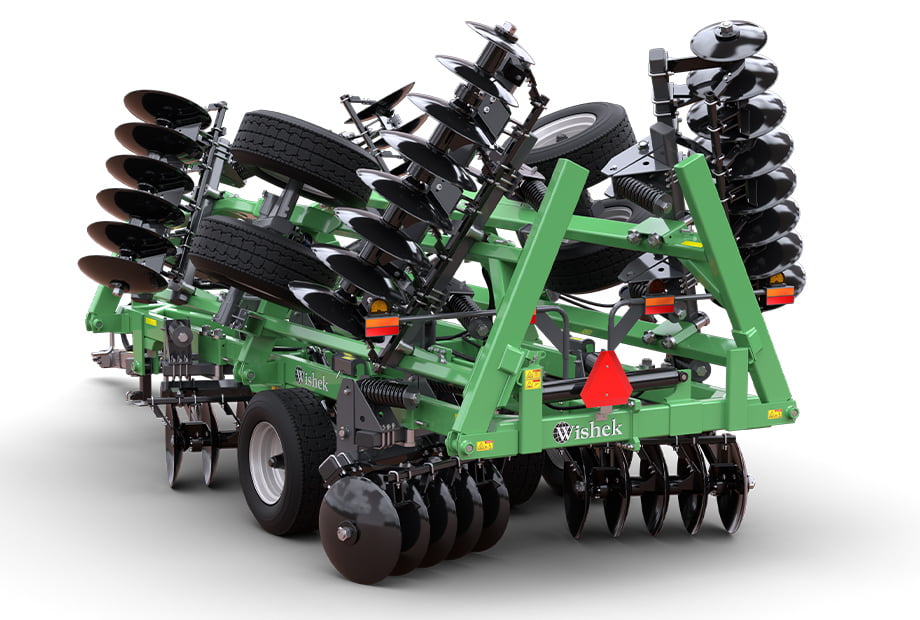

Base Specifications

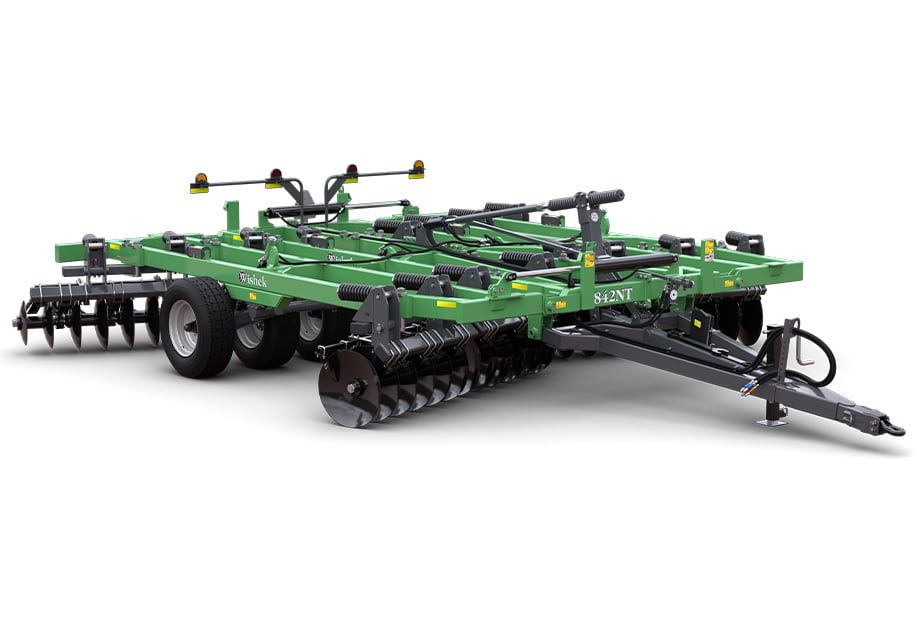

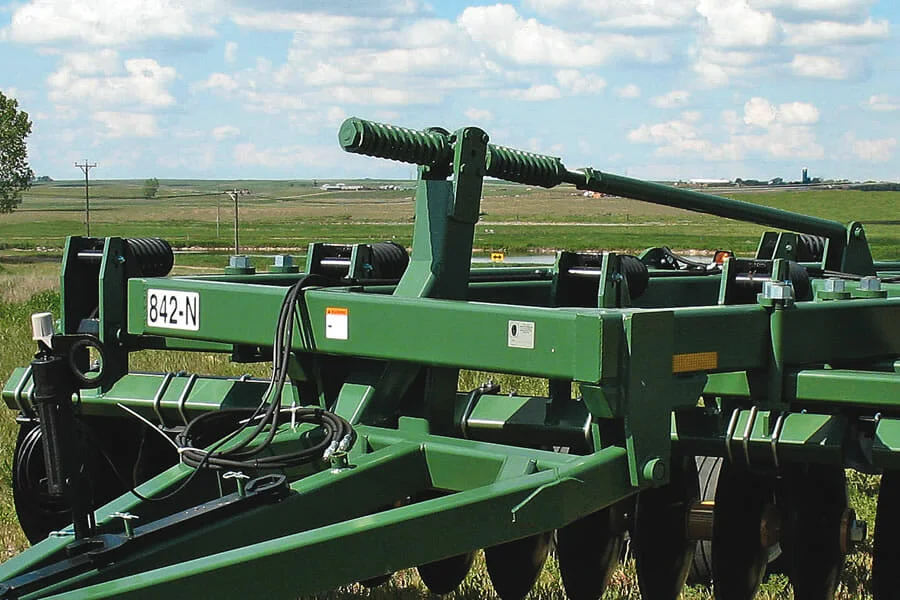

Frame
- 4″ x 8″ x 3/8″ (102 x 203 x 10 mm) Tubular frame

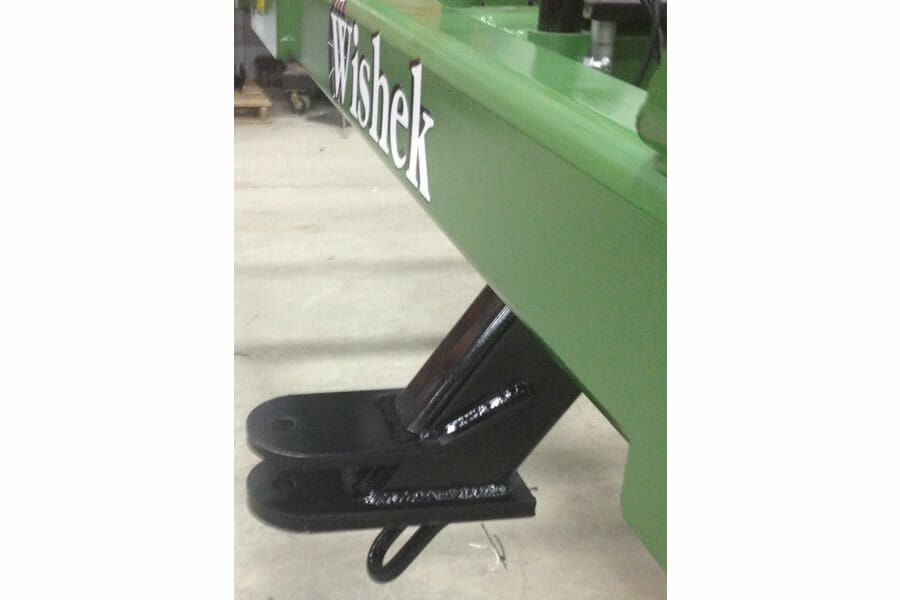

- Hitch jack
- Leveling crank
Safety Equipment
- Safety chain
- Transport warning light package

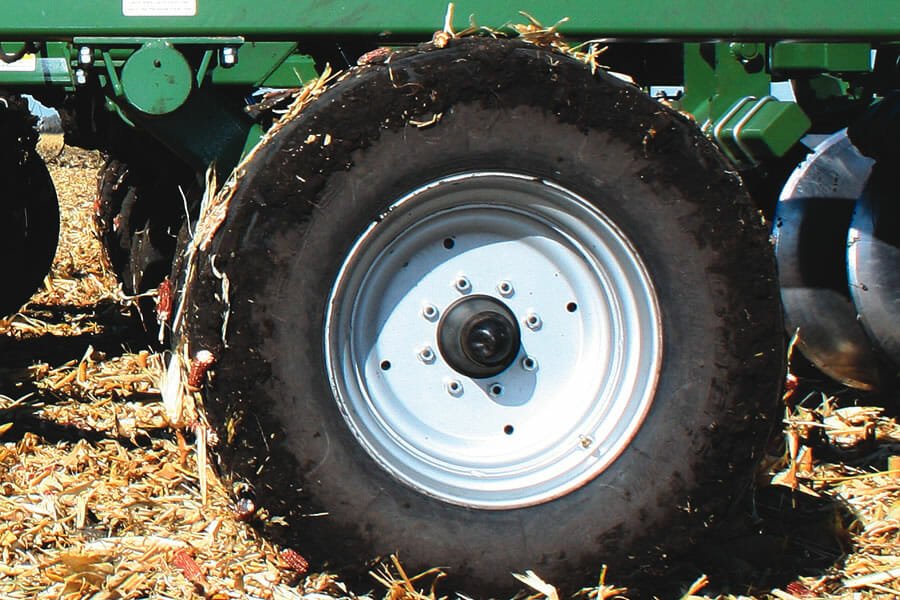

Tires
- 8-Bolt hubs (14’–30′) (4.3–9.1 m)
- 10-Bolt hubs (34’–38′) (10.4–11.6 m) – main frames only
- 12.5L x 15 tires on non-winged units
- (used) 385/65R 22.50 tires on winged units

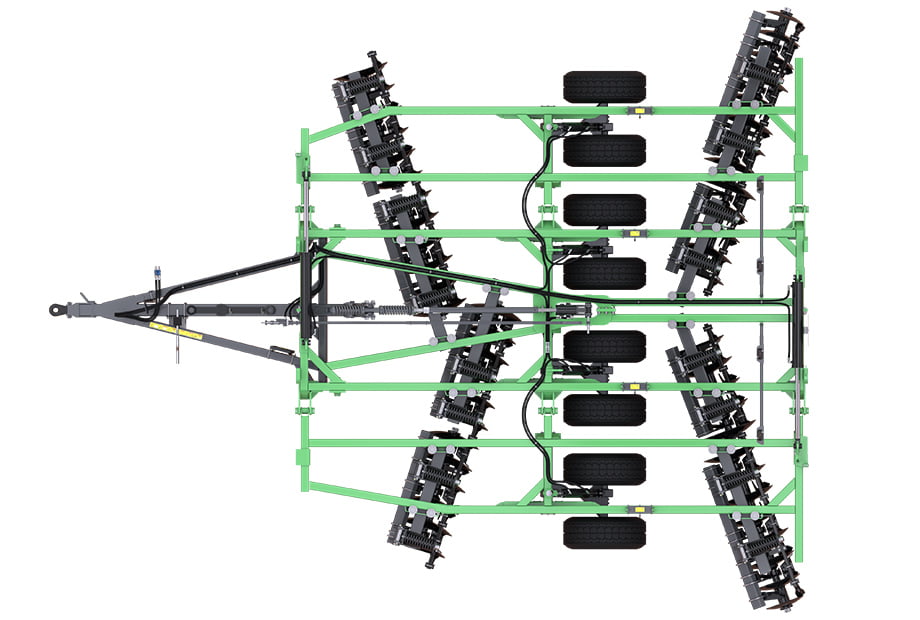

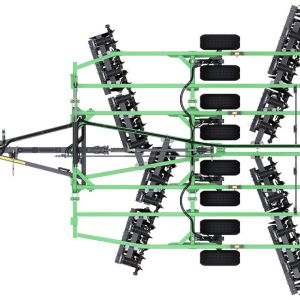

Gangs

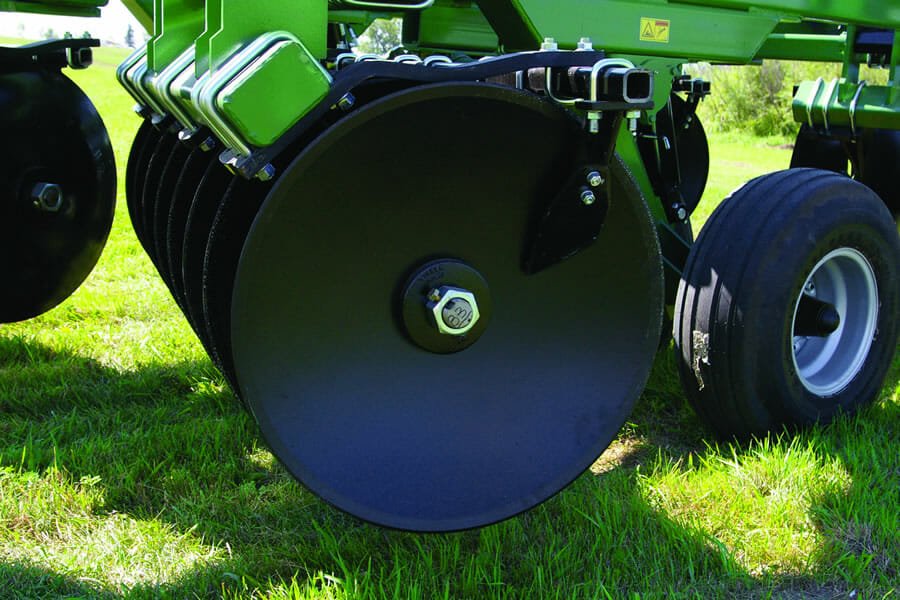

- 28″ x 5/16″ (711 x 8 mm) plain blades
- 11″ (28 cm) blade spacing
- 1-15/16″ (5 cm) gang shafts
- 214 series re-lube gang bearings
- Gang angle adjustment

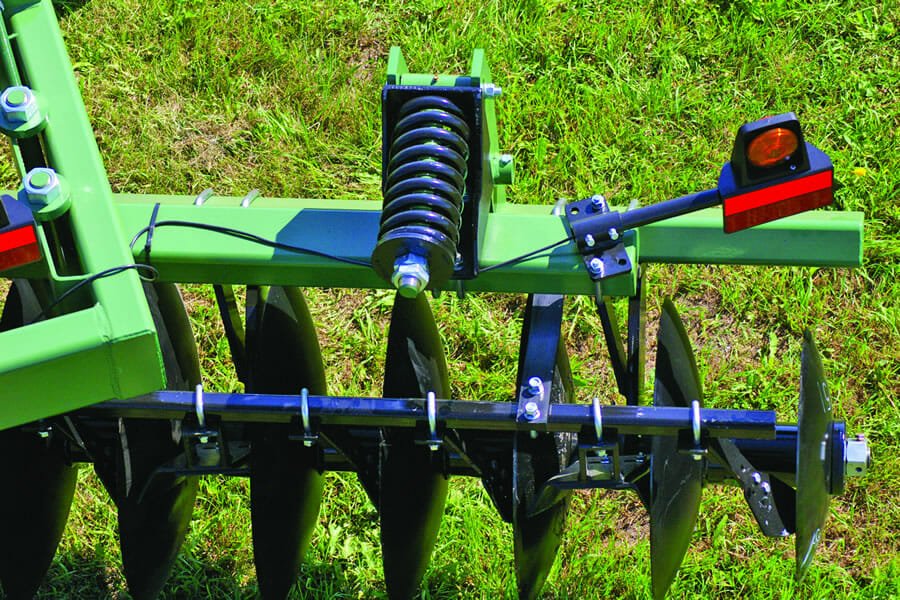

- Spring cushion gangs
- Gang bolt wrench
- Solid mount single scrapers
Hydraulics
- Hydraulic cylinders with hoses to tractor
General Information, Weights and Dimensions

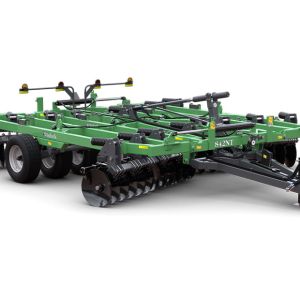

Model 842NT 28″ x 5/16″ (711 x 8 mm) blades, 30″ x 5/16″ (762 x 8 mm) optional, spring cushion gang with 11″ (279 mm) blade spacing
Model Number |
Working Width |
No. of Bearings |
No. of Blades |
Transport |
Weight |
Approx Wt. |
Approx. Power req’d |
||
|---|---|---|---|---|---|---|---|---|---|
Width |
Height |
Per Blade |
Per Foot |
||||||
| 842NT-14 Non-Wing | 14′ 1″ (4.3 m) |
6F, 6R | 14F, 16R | 15′ 9″ (4.8 m) |
7′ 0″ (2.1 m) |
441 lbs (200 kg) |
930 lbs (422 kg) |
13,186 lbs (5,981 kg) |
156–190 hp (116–142 kW) |
| 842NT-16 Non-Wing | 15′ 9″ (4.8 m) |
8F, 6R | 16F, 18R | 17′ 9″ (5.4 m) |
7′ 0″ (2.1 m) |
415 lbs (188 kg) |
891 lbs (404 kg) |
14,094 lbs (6,393 kg) |
165–211 hp (123–157 kW) |
| 842NT-22 Wing | 23′ (7 m) |
12F, 10R | 24F, 26R | 13′ 9″ (4.2 m) |
12′ 10″ (3.9 m) |
545 lbs (247 kg) |
1,193 lbs (541 kg) |
27,236 lbs (12,354 kg) |
230–300 hp (172–224 kW) |
| 842NT-24 Wing | 24′ 7″ (7.5 m) |
12F, 10R | 26F, 28R | 13′ 9″ (4.2 m) |
13′ 5″ (4.1 m) |
516 lbs (234 kg) |
1,133 lbs (514 kg) |
27,842 lbs (12,629 kg) |
240–321 hp (179–239 kW) |
| 842NT-26 Wing | 26′ 3″ (8 m) |
12F, 12R | 28F, 30R | 14′ 9″ (4.5 m) |
14′ 1″ (4.3 m) |
500 lbs (227 kg) |
1,102 lbs (500 kg) |
29,024 lbs (13,165 kg) |
260–335 hp (194–250 kW) |
| 842NT-30 Wing | 29′ 10″ (9.1 m) |
14F, 14R | 32F, 34R | 17′ 1″ (5.2 m) |
15′ 5″ (4.7 m) |
476 lbs (216 kg) |
1,058 lbs (480 kg) |
31,482 lbs (14,280 kg) |
309–400 hp (231–298 kW) |
| 842NT-34 Wing | 33′ 2″ (10.1 m) |
16F, 18R | 36F, 38R | 15′ 9″ (4.8 m) |
14′ 1″ (4.3 m) |
509 lbs (231 kg) |
1,135 lbs (515 kg) |
37,737 lbs (17,117 kg) |
341–445 hp (254–332 kW) |
| 842NT-38 Wing | 38′ 5″ (11.7 m) |
18F, 20R | 42F, 44R | 15′ 9″ (4.8 m) |
17′ 9″ (5.4 m) |
540 lbs (245 kg) |
1,151 lbs (522 kg) |
44,300 lbs (20,094 kg) |
189–375 hp (280–365 kW) |
Due to working depth and ground conditions. HP requirements will vary.
