816NT

Base Specifications

Frame
  • 4″ x 8″ x 3/8″ (10 cm x 20 cm x 9 mm) Tubular frame
  • Hitch jack
  • Leveling crank
Safety Equipment
  • Safety chain
  • Transport warning light package
Tires
  • 8-Bolt hubs (14′–30′) (3–9.1 m)
  • 10-Bolt hubs (34′–38′) (10.4–11.6 m) main frames only
  • 12.5L x 15 tires on non-winged units
  • (used) 385/65R 22.50 tires on winged units
Gangs
  • 30″ x 5/16″ (762 x 8 mm) plain blades
  • 13″ (330 mm) blade spacing
  • 1-15/16″ (33 mm) gang shafts
  • 214 series re-lube gang bearings
  • Gang angle adjustment
  • Rigid gang
  • Gang bolt wrench
  • Solid mount single scrapers
  • 3 step down blades on outside end of each rear gang
Hydraulics
  • Hydraulic cylinders with hoses to tractor

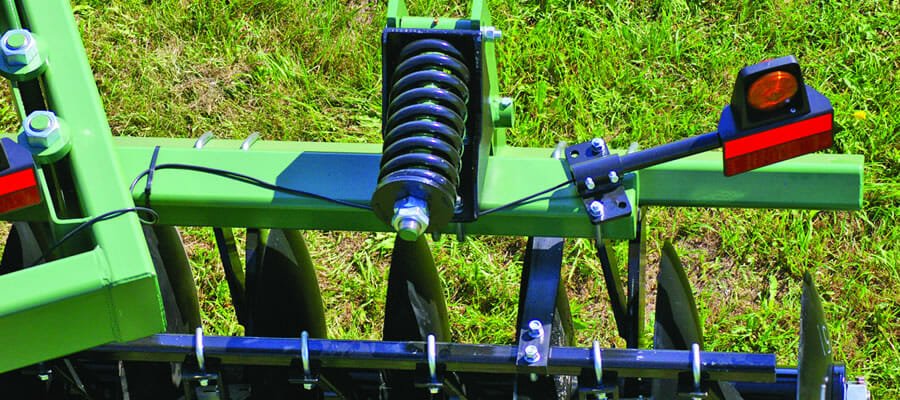

Gallery

General Information, Weights and Dimensions

Model 816NT 30″ x 5/16″ (762 x 8 mm) blades rigid gang with 13″ (330 mm) blade spacing

Model Number
Working Width
No. of Bearings
No. of Blades
Transport
Weight
Approx Wt.
Approx. Power req’d
Width
Height
Per Blade
Per Foot
816NT-14 Non-Wing 14′ 4″
(4.4 m)
6F, 6R 12F, 14R 15′ 11″
(4.6 m)
7′ 0″
(2.1 m)
431 lbs
(196 kg)
782 lbs
(355 kg)
11,212 lbs
(5,086 kg)
160–225 hp
(119–168 kW)
816NT-16 Non-Wing 16′ 4″
(5.0 m)
6F, 6R 14F, 16R 18′ 5″
(5.6 m)
7′ 0″
(2.1 m)
393 lbs
(178 kg)
722 lbs
(328 kg)
11,793 lbs
(5,349 kg)
195–260 hp
(145–194 kW)
816NT-22 Wing 22′ 6″
(6.6 m)
8F, 10R 20F, 22R 12′ 6″
(3.8 m)
12′ 10″
(3.9 m)
537 lbs
(243 kg)
1,003 lbs
(455 kg)
22,560 lbs
(10,233 kg)
260–350 hp
(194–261 kW)
816NT-30 Wing 30′ 9″
(9.4 m)
14F, 12R 28F, 30R 14′ 8″
(4.5 m)
15′ 10″
(4.8 m)
463 lbs
(210 kg)
874 lbs
(396 kg)
26,861 lbs
(12,184 kg)
360–480 hp
(269–358 kW)
816NT-34 Wing 34′ 11″
(10.6 m)
14F, 14R 32F, 34R 16′ 0″
(4.9 m)
15′ 9″
(4.3 m)
534 lbs
(242 kg)
887 lbs
(402 kg)
30,975 lbs
(14,050 kg)
420–560 hp
(313–418 kW)
816NT-38 Wing 39′ 0″
(11.9 m)
16F, 14R 36F, 38R 16′ 0″
(4.9 m)
17′ 9″
(5.4 m)
566 lbs
(257 kg)
842 lbs
(382 kg)
32,825 lbs
(14,889 kg)
460–620 hp
(343–462 kW)

Due to working depth and ground conditions. HP requirements will vary.
