862N

Base Specifications

Frame
  • 4″ x 8″ x 3/8″ (102 x 203 x 10 mm) Tubular frame
  • Hitch jack
  • Leveling crank
Safety Equipment
  • Safety chain
  • Transport warning light package
Tires
  • 12.5L x 15 tires
  • 8-bolt hubs

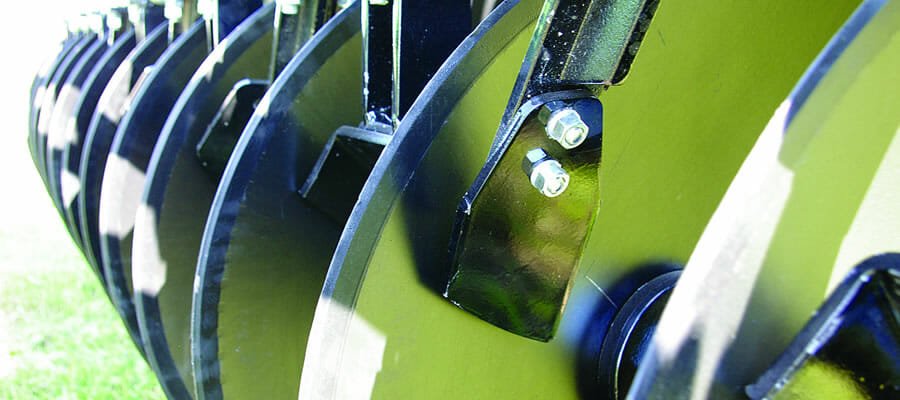

Gangs
  • 30 x 5/16″ (762 x 8 mm) plain blades
  • 13″ (330 mm) blade spacing
  • 1-15/16″ (49 mm) gang shafts
  • 214 series re-lube gang bearings
  • Spring cushion gangs
  • Gang angle adjustment
  • Gang bolt wrench
  • Solid mount scrapers
Hydraulics
  • Hydraulic cylinders with hoses to tractor

Gallery

General Information, Weights and Dimensions

Model 862N 30 x 5/16″ (762 x 8 mm) blades/spring cushion gang with 13″ (330 mm) blade spacing



Model Number
Working Width
No. of Bearings
No. of Blades
Transport
Weight
Approx Wt.
Width
Height
Per Blade
Per Foot
862N-12
Non-Wing
12′ 10″
(3.9 m)
6F, 6R 12F, 13R 14′ 8″
(4.5 m)
7′ 0″
(2.1 m)
512 lbs
(233 kg)
998 lbs
(455 kg)
12,812 lbs
(5,834 kg)
862N-14
Non-Wing
14′ 11″
(4.5 m)
6F, 6R 14F, 15R 16′ 6″
(5 m)
7′ 0″
(2.1 m)
485 lbs
(215 kg)
943 lbs
(419 kg)
14,072
(6,242 kg)
862N-16
Non-Wing
16′ 11″
(5.2 m)
7F, 7R 16F, 17R 18′ 6″
(5.6 m)
7′ 0″
(2.1 m)
450 lbs
(201 kg)
878 lbs
(391 kg)
14,846 lbs
(6,620 kg)
862N-18
Non-Wing
18′ 11″
(5.8 m)
8F, 8R 18F, 19R 20′ 7″
(6.3 m)
7′ 0″
(2.1 m)
423 lbs
(187 kg)
823 lbs
(365 kg)
15,639 lbs
(6,927 kg)

Model 932N 32 x 5/16″ (813 x 8 mm) blade/rigid bearing gang with 13″ (330 mm) blade spacing

Model Number
Working Width
No. of Bearings
No. of Blades
Transport
Weight
Approx Wt.
Width
Height
Per Blade
Per Foot
932N-10
Non-Wing

10′ 10″
(3.3 m)

5F, 4R 10F, 11R 11′ 10″
(3.6 m)
6′ 11″
(2.1 m)
514 lbs
(233 kg)
1,184 lbs
(537 kg)
12,813 lbs
(5,812 kg)
932N-14
Non-Wing
13′ 9″
(4.2 m)
6F, 5R 13F, 14R 15′ 9″
(4.8 m)
6′ 11″
(2.1 m)
545 lbs
(247 kg)
1,056 lbs
(479 kg)
14,694 lbs
(6,665 kg)
932N-16
Non-Wing
16′ 1″
(4.9 m)
7F, 6R 15F, 16R 17′ 9″
(5.4 m)
6′ 11″
(2.1 m)
538 lbs
(244 kg)
1,045 lbs
(474 kg)
16,713 lbs
(7,581 kg)

Due to working depth and ground conditions. HP requirements will vary.
