612N

612N

Base Specifications

Frame
  • 4″ x 6″ x 3/8″ (102 x 152 x 10 mm) Tubular frame
  • Hitch jack
  • Leveling crank
Safety Equipment
  • Safety chain
  • Transport warning light package

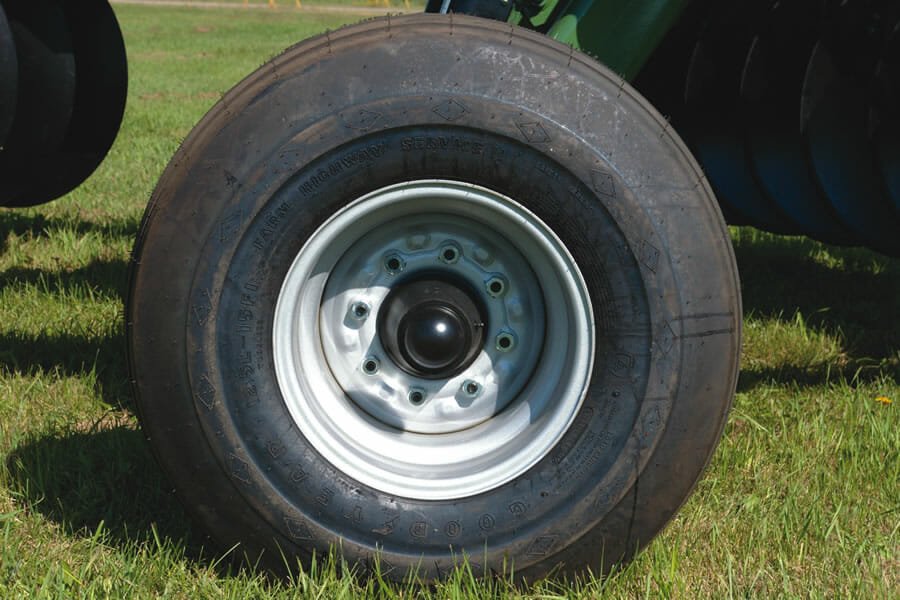

Tires
  • 11L x 15 tires
  • 6-bolt hubs
Gangs
  • 24″ x 5/16″ (610 x 8 mm) plain blades
  • 10″ (254 mm) blade spacing
  • 1-15/16″ (49 mm) gang shafts
  • 214 series re-lube gang bearings
  • Gang angle adjustment
  • Rigid gang
  • Gang bolt wrench

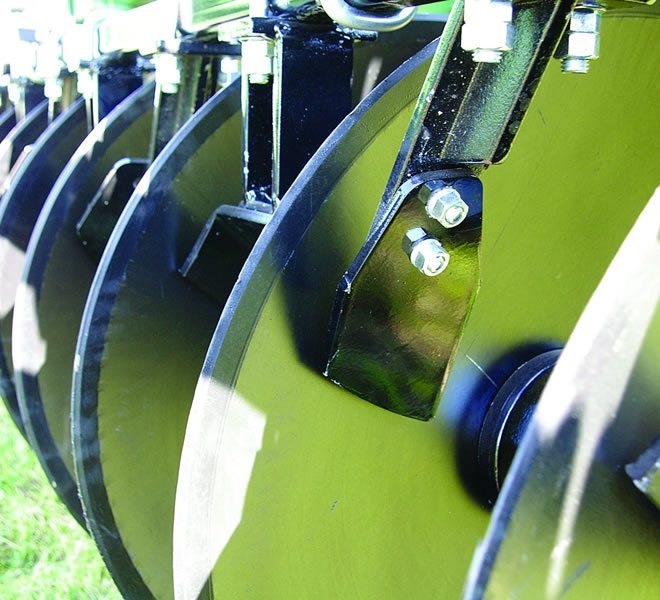

  • Solid mount single scrapers
Hydraulics
  • Hydraulic cylinders with hoses to tractor

Gallery

    • General Information, Weights and Dimensions

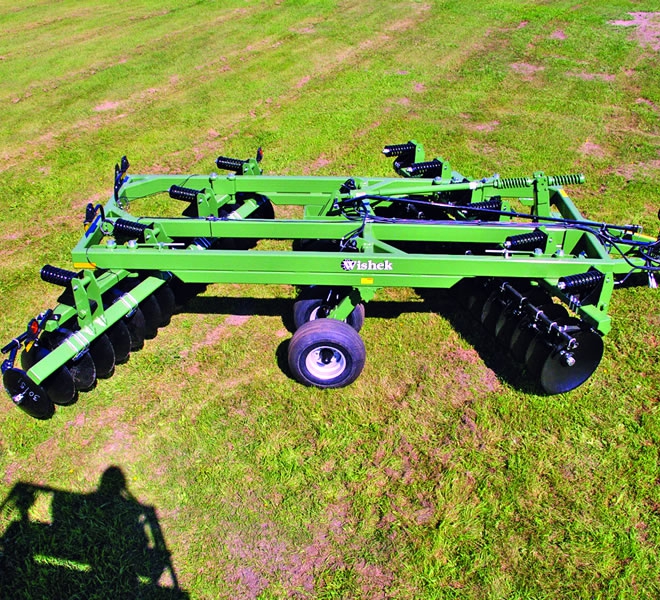

    Model 612N
    24 x 5/16″ (610 x 8 mm) blades, 26 x 5/16″ (660 x 8 mm) optional, rigid bearing gang with 10″ (254 mm) blade spacing



    Model Number
    Working Width
    No. of Bearings
    No. of Blades
    Transport
    Weight
    Approx Wt.
    Width
    Height
    Per Blade
    Per Foot
    612N-12
    Non-Wing

    13′ 1″
    (4.0 m)

    		 6F, 6R 16F, 17R 14′ 10″
    (4.5 m)    		 6′ 0″
    (1.8 m)    		 294 lbs
    (133 kg)    		 741 lbs
    (336 kg)

    9,699 lbs
    (4,399 kg)
    612N-14
    Non-Wing    		 14′ 8″
    (4.5 m)    		 6F, 6R 18F, 19R 16′ 5″
    (5.0 m)    		 6′ 0″
    (1.8 m)    		 273 lbs
    (124 kg)    		 688 lbs
    (312 kg)    		 10,097 lbs
    (4,580 kg)
    612N-16
    Non-Wing    		 16′ 3″
    (4.9 m)    		 8F, 7R 20F, 21R 17′ 11″
    (5.5 m)    		 6′ 0″
    (1.8 m)    		 263 lbs
    (119 kg)    		 662 lbs
    (300 kg)    		 10,763 lbs
    (4,882 kg)
    612N-18
    Non-Wing    		 17′ 10″
    (5.5 m)    		 8F, 7R 22F, 23R 19′ 6″
    (5.9 m)    		 6′ 0″
    (1.8 m)    		 245 lbs
    (111 kg)    		 618 lbs
    (280 kg)    		 11,016 lbs
    (4,997 kg)

    Due to working depth and ground conditions. HP requirements will vary.
