Primary Use

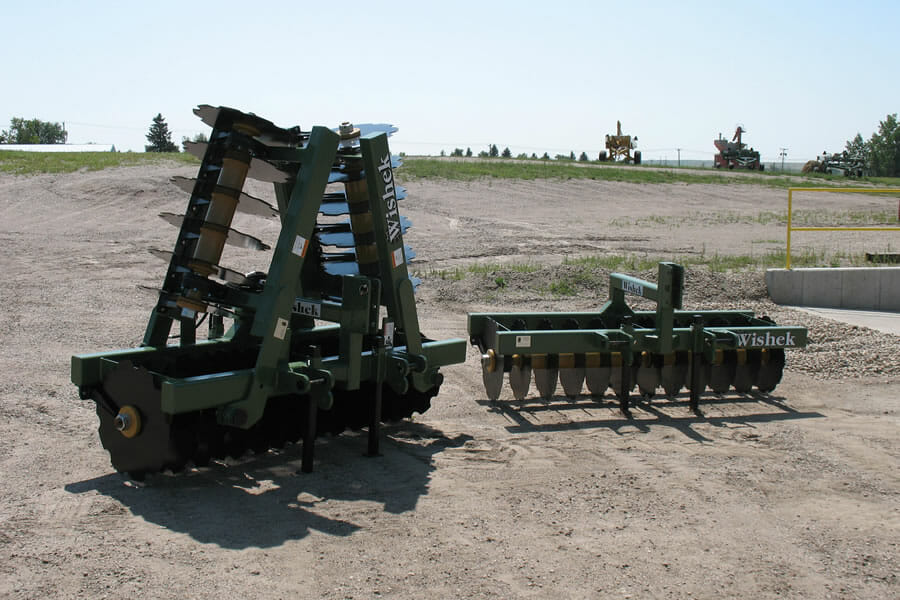

The Wishek Straw Press is ideal for road contractors, landscapers and nurseries to incorporate materials, such as straw, straw mulch and others into newly seeded areas to prevent soil erosion.
Secondary Use
The Wishek Straw Press is excellent tool for farmers, ranchers, parks and other recreation areas to aerate soils that have become compacted over time, such as pastures, hay land, sports arenas, and golf courses.
Base Specifications
Gangs

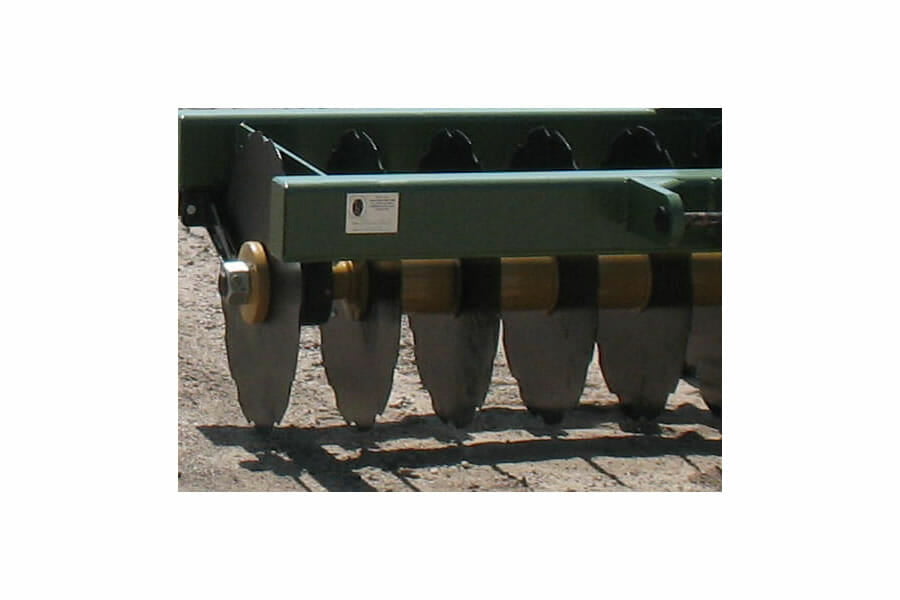

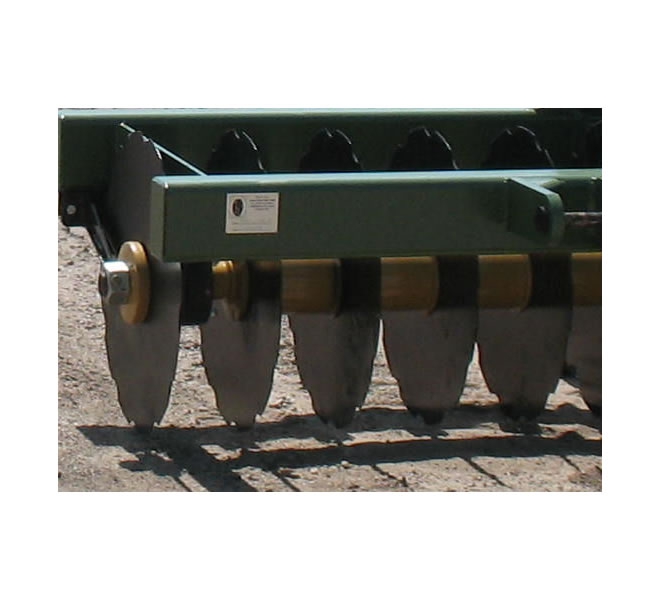

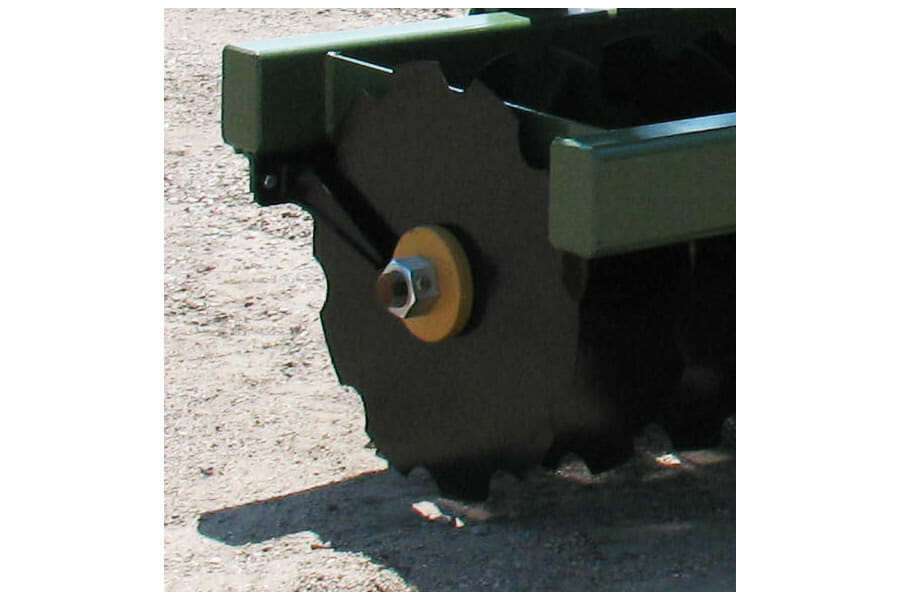

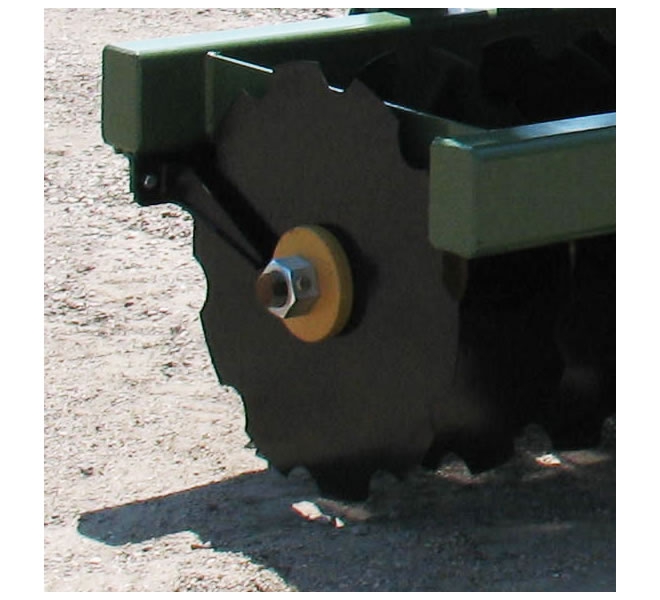

- 24 x 1/4″ (610 x 6 mm) notched coulter blades
- 8″ (203 mm) blade spacing
- 1-15/16″ (49 mm) gang shafts
- 214 series re-lube gang bearings
- Blade scrapers
Frame
- Cat I and Cat II 3-pt. mount
- 6″ x 4″ x 3/8″ (152 x 102 x 10 mm) Tubular frame

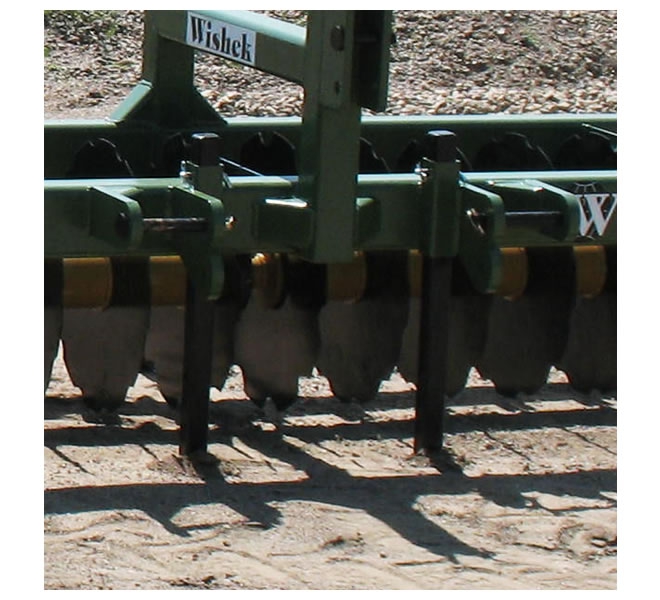

- Three jack stands
Hydraulics
- Hydraulic cylinders with hoses to tractor (16′) (4.8 m)
Gallery
General Information, Weights and Dimensions
Model 3-Point 24” x ¼” (610 x 6 mm) Notched Coulter Blade/ Rigid Stand
Model Number |
Cutting Width |
No. of Bearings |
No. of Blades |
Transport |
Weight |
Approx Wt. |
||
|---|---|---|---|---|---|---|---|---|
Width |
Height |
Per Blade |
Per Foot |
|||||
| 8 FT. | 7’ 4” (2.2 m) |
3 | 12 | 7’ 11” (2.4 m) |
3’ 8” (1.1 m) |
124 lbs (56 kg) |
203 lbs (92 kg) |
1,491 lbs (676 kg) |
| 16 FT. Wing | 15’ 5” (4.7 m) |
7 | 24 | 7’ 11” (2.4 m) |
6’ 6” (2.0 m) |
130 lbs (59 kg) |
202 lbs (92 kg) |
3,118 lbs (1,414 kg) |
Due to working depth and ground conditions. HP requirements will vary.
