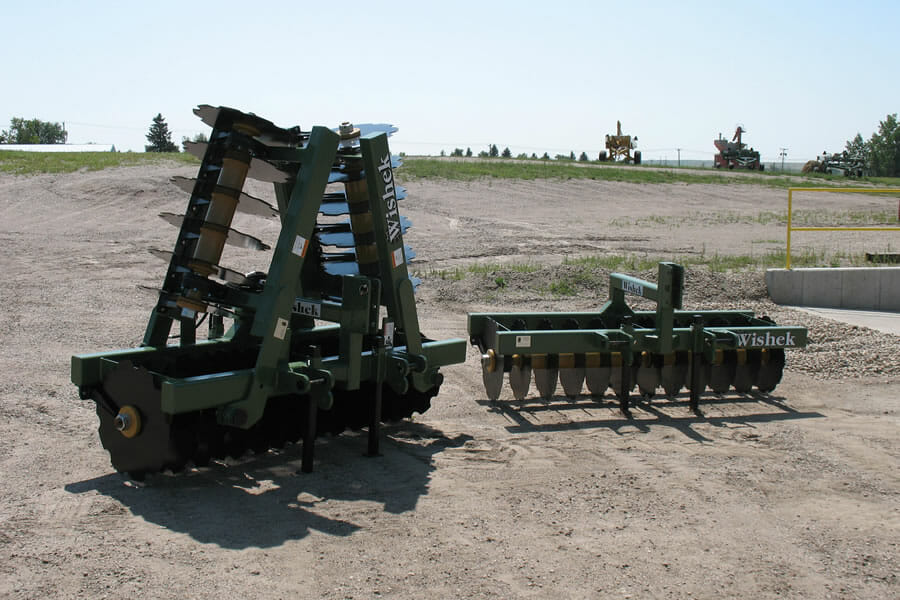

Straw Press

Primary Use

The Wishek Straw Press is ideal for road contractors, landscapers and nurseries to incorporate materials, such as straw, straw mulch and others into newly seeded areas to prevent soil erosion.

Secondary Use

The Wishek Straw Press is excellent tool for farmers, ranchers, parks and other recreation areas to aerate soils that have become compacted over time, such as pastures, hay land, sports arenas, and golf courses.

Base Specifications

Gangs

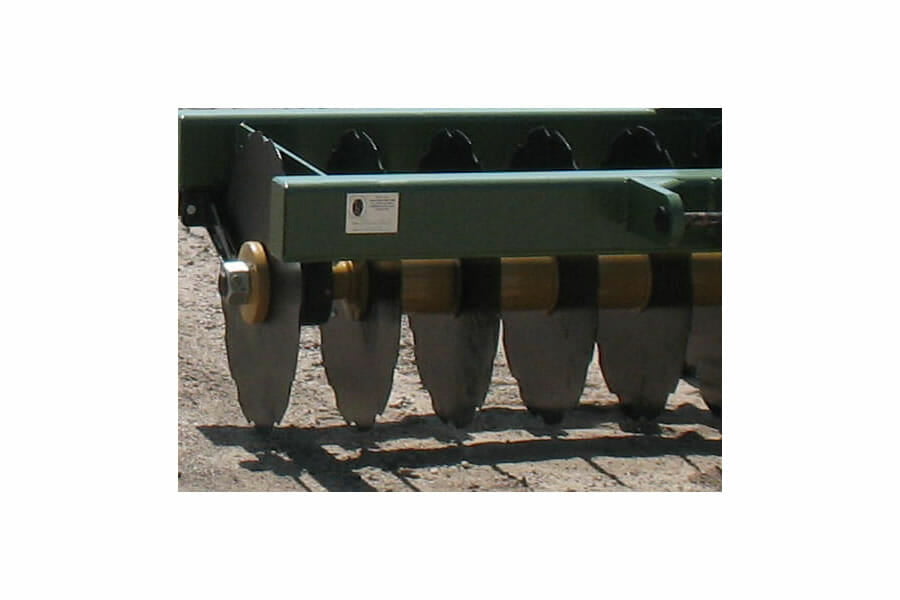

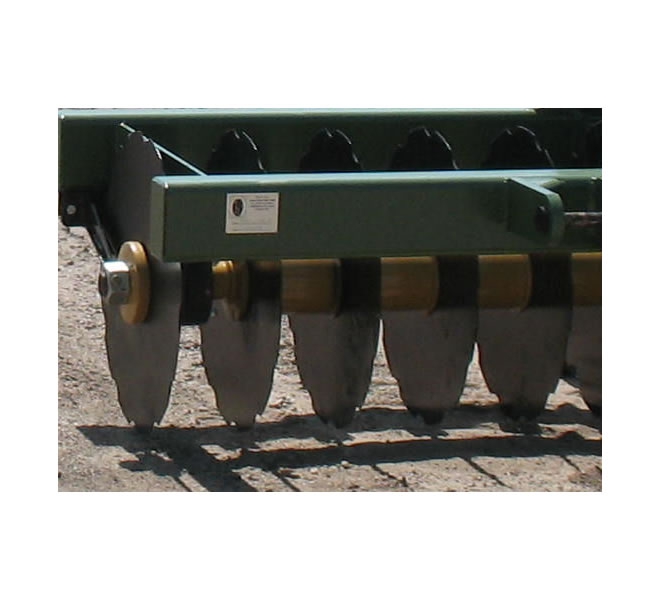

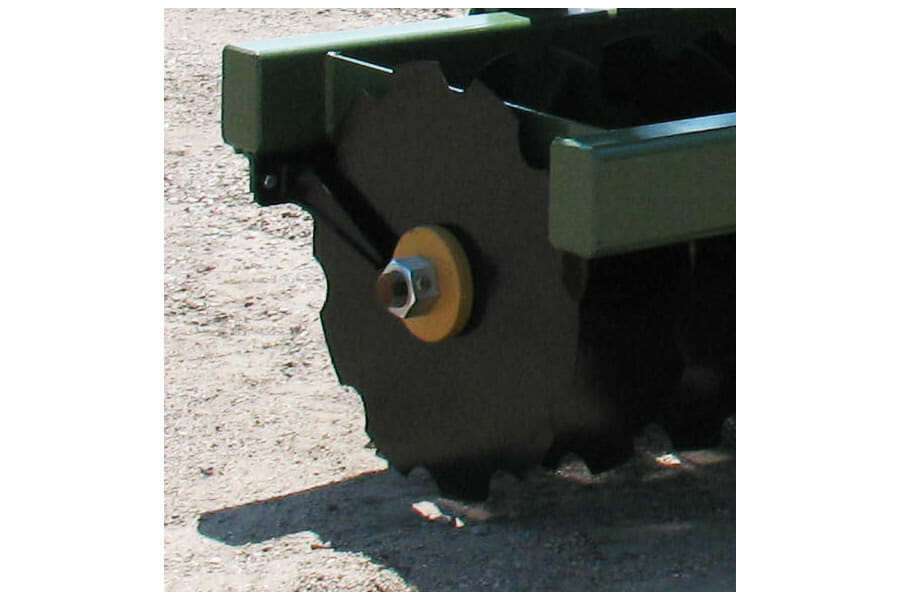

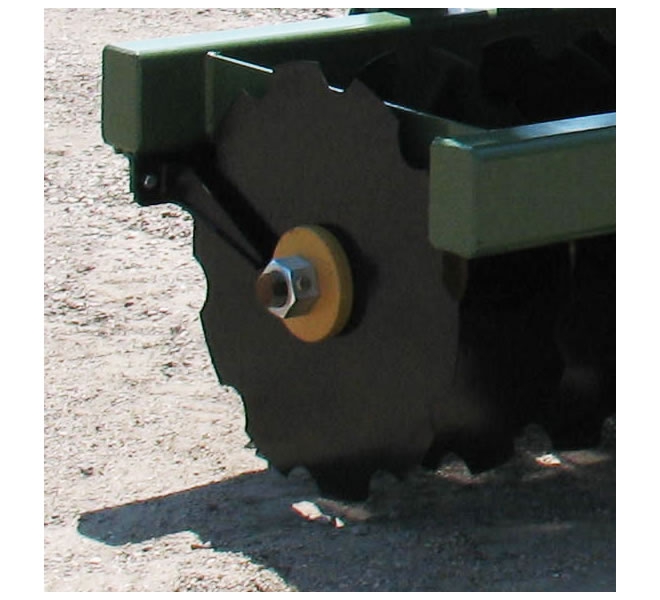

  • 24 x 1/4″ notched coulter blades
  • 8″ blade spacing
  • 1-15/16″ gang shafts
  • 214 series re-lube gang bearings
  • Blade scrapers

Frame
  • Cat I and Cat II 3-pt. mount
  • 6″ x 4″ x 3/8″ Tubular frame

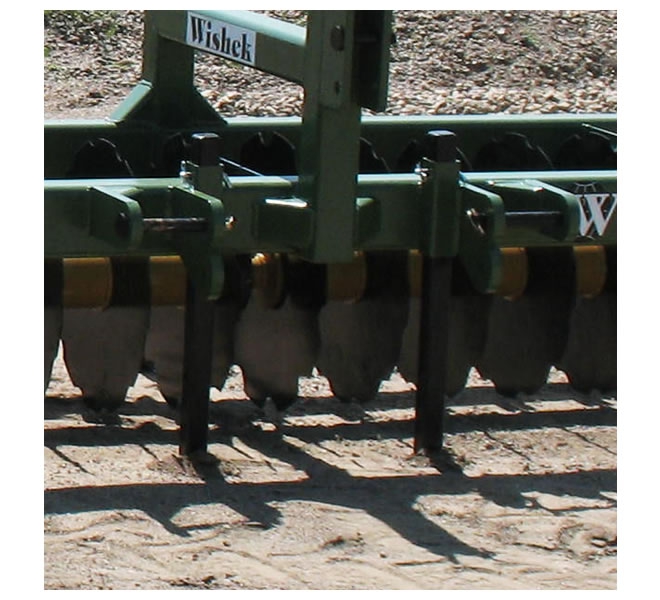

  • Three jack stands

Hydraulics
  • Hydraulic cylinders with hoses to tractor (16′)

Gallery

General Information, Weights and Dimensions

Model 3-Point 24” x ¼” Notched Coulter Blade/ Rigid Stand
Model Number
Cutting Width
No. of Bearings
No. of Blades
Transport
Weight (lbs.)
Approx Wt. (lbs.)
Width
Height
Per Blade
Per Foot
8 FT. 7’ 4” 3 12 7’ 11” 3’ 8” 124 203 1,491
16 FT. Wing 15’ 5” 7 24 7’ 11” 6’ 6” 130 202 3,118

Due to working depth and ground conditions. HP requirements will vary.
